Why You Should Do Prototype to Verify Part Design Before Mold Making?

​​Why Prototyping is Non-Negotiable for Part Design Verification Before Mold Manufacturing​​

​​Introduction: Bridging the Design-Manufacturing Divide​​

Mold development typically consumes 30%-50% of a product’s total cost, with design flaws potentially triggering modification expenses exceeding initial tooling investments. Despite advances in CAD/CAE simulations, virtual environments still fail to fully replicate physical-world complexities—nonlinear material behaviors, accumulated assembly stresses, and environmental variables often create discrepancies between simulation and reality. ​​Prototyping​​ serves as the critical bridge across this gap, exposing design flaws through physical models before catastrophic tooling failures occur. As automotive engineers assert: “Designing without prototyping is like walking blindfolded toward a cliff.”

​​I. Risk Mitigation: Engineering’s Last Line of Defense​​

​​1. Intercepting Structural Failures​​

• ​​Case Study​​: A vacuum cleaner housing passed CAE simulations but fractured during drop tests of a 3D-printed prototype due to inconsistent wall thickness. Topology optimization adding reinforcement ribs prevented scrapping an $115,000 injection mold.
• ​​Tolerance Stack-up​​: CNC-machined transmission brackets revealed 0.1mm cumulative bore misalignments undetected in virtual assembly, potentially causing production line stoppages.

​​2. Cost-Benefit Quantification​

Industry data shows mold modifications cost 5-20x prototyping expenses. E.g., a 70,000 plastic mold vs. 2,200 SLS prototype validation.

​​II. Performance Validation: From Digital Twins to Real-World Physics​​

​​1. Dynamic Scenario Testing​​

• Medical syringe prototypes underwent -20°C to 60°C thermal cycling, exposing seal failures from O-ring hardening. Material reformulation prevented batch recalls.
• Power tool grip prototypes enabled 200-hour ergonomic testing, reducing muscle strain by 40% through curvature optimization.

​​2. Extreme Environment Trials​

Aviation connector prototypes exposed contact resistance spikes under 150°C/85%RH conditions, extending service life from 5 to 10 years via plating process adjustments.

​​III. Manufacturing Feasibility: Navigating Production Readiness​​

​​1. Injection Molding Pitfalls​​

• Wall thickness transitions (4mm→1.2mm) identified via SLA prototypes prevented sink marks in router housings, avoiding 3 trial-run cycles.
• Undercut redesign: Prototype-driven lock mechanism changes eliminated complex angled lifters, simplifying mold structures.

​​2. Material Flow Visualization​

​Transparent resin models revealed melt stagnation in thin channels, prompting overflow groove additions that boosted yield rates by 22%.

​​IV. Accelerated Development: The Agile Engineering Imperative​

​​Evidence​​:

• Ford’s 3D-printed intake manifold prototypes compressed iterations from 6 weeks to 3 days, shortening development by 42%.
• Samsonite’s outsourced prototyping validated 20+ lock designs weekly, accelerating product launches by 60%.

​​V. Cost Engineering Paradigm: The ROI Multiplier Effect​​

​​Economic Model​​:
Validation ROI = (Mold failure cost × Probability) / Prototype investment
A ratio >5 establishes prototyping necessity.

​​Hidden Cost Exposure​​:

• Auto line stoppages: ~$7,000/hour
• Missed market windows: 15% lifetime profit loss/month for electronics

​​VI. Prototyping Technology Matrix​​

​​VII. Next Frontier: The AI-Digital Twin Convergence​​

1. ​​Simulation Revolution​​:
   Neural networks trained on 100K physical datasets boosted shrinkage prediction accuracy from 68% to 92%.
2. ​​Virtual Tool Trials​​:
   BMW reduced physical prototypes by 40% using NVIDIA Omniverse mold simulations.
3. ​​Generative Validation​​:
   Autodesk’s AI-driven topology optimization automatically generates rib patterns for immediate 3D printing.

​​Conclusion: Why Prototyping is Essential for Verifying Part Design Before Mold Making​​

The primary reasons for conducting prototype verification of part designs before mold manufacturing include:

​​1.Reducing Development Risk​

Prototype testing allows early detection of design flaws (e.g., structural weaknesses, assembly interferences, dimensional errors), preventing costly mold scrapping or repeated modifications. This saves both time and resources .

​​2.Validating Functionality & Performance​

​Physical prototypes simulate real-world operating conditions, enabling functional testing of components (e.g., kinematic mechanisms, sealing integrity, durability) to ensure designs meet actual requirements .

​​3.Optimizing Production Processes

​​Prototypes help evaluate the feasibility of manufacturing processes like injection molding or stamping (e.g., assessing draft angles, wall thickness uniformity), reducing adjustments needed during mold trial phases .

​​4.Shortening Development Cycles​

​Rapid prototyping techniques (e.g., 3D printing, CNC machining) enable design iterations within days—far more efficient than discovering flaws after mold creation and reworking .

​​5.Lowering Costs​

​Modifying or remaking molds is significantly more expensive than prototype costs. For instance, an injection mold may cost tens of thousands of dollars, while prototypes can verify critical issues for just a few thousand .

​​Common Prototyping Methods​​:

3D printing, soft tooling (silicone molds), CNC machining, and sheet metal prototyping are widely used. Selection depends on material requirements, precision, and budget constraints .

​Prototype verification is a critical bridge between design and mass production, drastically increasing success rates while controlling overall costs​

The Strategic Value Engine​​

“Where prototyping evolves from optional to essential, manufacturing shifts from experience-driven to data-powered logic. Each interference detected early builds guardrails before the cliff-edge.” — Tier 1 Supplier CTO

In the Industry 4.0 era, prototyping transcends “model checking” to become manufacturing’s ​​strategic nexus​​—a safety fuse against technical risks, an innovation catalyst, and a new competitive imperative.

​​Sources​​: Protolabs State of Manufacturing Report | Accenture Industrial Insights | Ford Engineering Documentation

Case：

This is a bad case that happened a few years ago. This is a loss for both the client and our-self. The mold is modified again and again, at first we are not aware of that there will be such a long way to go before we committed to taking the job. We also know little of the client or we were able to make greater efforts to pull things back on right track.

Customer:

“Hi Tim,
What I know about tooling here in UK is that you always make the tool in a way that if adjustments are needed. It can be done always. It’s easier to take away metal than add metal, I am sure you work this way yes? Please confirm you are ready to proceed.”

Our reply:

“Hi Steven,
Easier to add steel than reduce steel. Yes, when it is necessary, we leave some ” safe steel” for further adjustment. But none of these is as important as the part design itself to determine the success of your project. Please focus on your part design, please let me know worry about mold making, you need to double check your design before tool making. Have you done prototype to verify your design?  Do you have an assembly drawing to show which go with which?
If you are ready to move forward, please send me the finalized part drawing, and the approved quotation sheet (or issue an official PO if you can). We will provide PI for deposit accordingly,  then we can start DFM process.”

After the mold is completed and samples submitted, we have spend quite a long time to do injection mold modifications due to many times part design changes.

Our replay:

“Hi Steven,
We have spent more than one month to modify the mold due to frequently design changes , please help to double check and confirm if this is the final drawing. If you couldn’t confirm that, l strongly propose you to make a prototype to verify your updated design. It will cost you way more money and time to modify the injection mold than making prototype to verify your design.

Following are the detail of all the modifications with the cost. Please feel free to let me know if you need any further clarification.“

Modification Comes again

“Hello Steven,

Please could you advise the reason of changing plastic resin to ABS and ABS/PC ?  These 2 type of resin is weaker than POM. Considering this is an export mold project, our Job is making you a mold,  verifying the alternative resin is not in our plan. Do you think you can do this resin verification after the mold transferred to UK ?

Also please confirm the modification you mentioned is the last time modification. Since we just made a change over this area once last time, changing it again is difficult.  Please confirm if this change 7.5 to 5mm is a must.  l strongly propose you to do 3D printing or CNC machine prototype before modification, that would save your cost, time.

Sorry l have to say so, but please give us a confirm information what to do. My people are getting lost right now, we don’t know if we should continue modification or we should stop to wait your new instructions raised up like each 2-3 days a new requirement.”

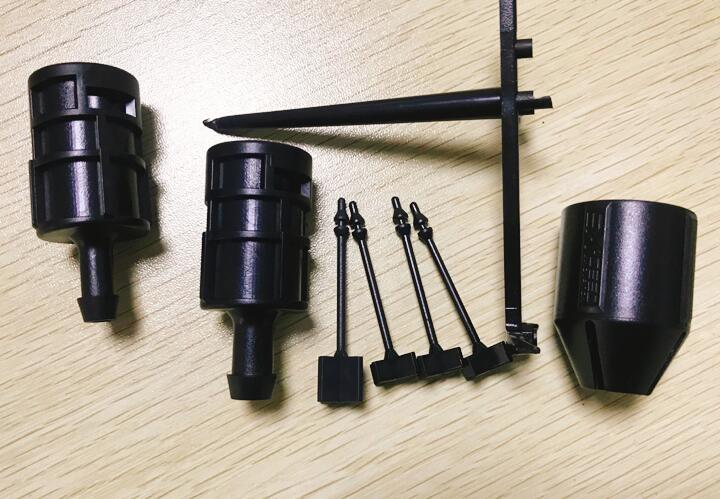

At last we made 5 times of modification before shipping the mold to the customers. The good news is the final result is still not bad. To be honest, no injection mold maker enjoy a work like this but sometimes it do happens. Part of the reason is immature design, some of the injection mold buyer are not aware of this is the case. But majorly l think the injection mold maker or injection molder, as the professionals, should be able to be careful and smart enough to help the clients out of this trouble as much as possible.

Feedback :

“Hi Tim,
They look excellent! Thank you for the hard work and professionalism that your company demonstrates.”
